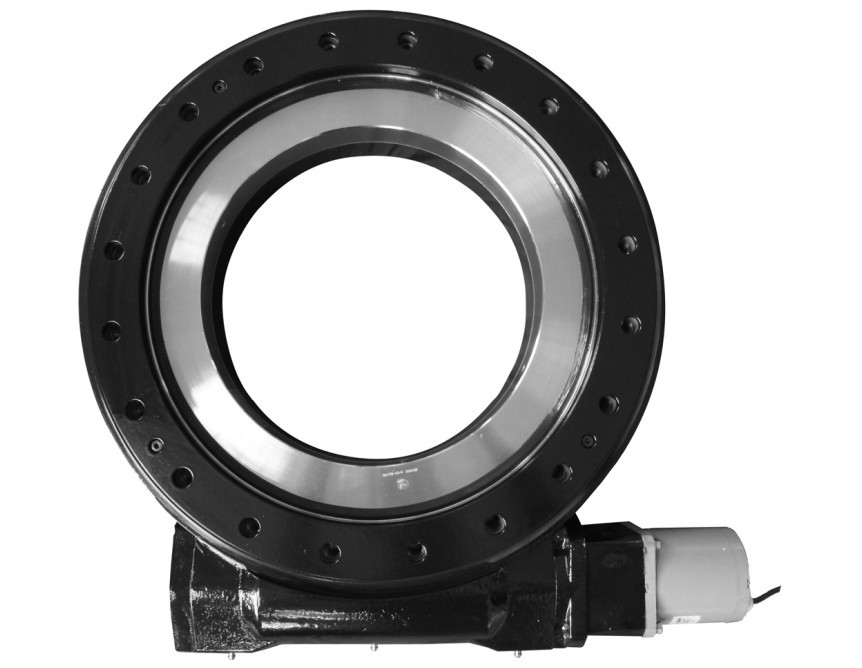

Worm gear slew drive (WE type)
WE series slewing drive is similar to the SE, but the difference is designed with curved tooth slewing ring, the output torque is increased, with the smooth running of a superior anti-sandstorm, field use, etc.
The WE series is a good choice when you are in the Wild harsh working conditions and need anti-glued more stronger.

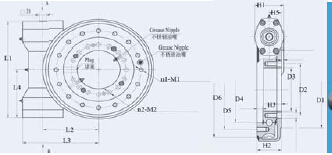

Please click the model number to check the other drawing for the Worm gear slew drive .
<
| Model Data | Output Torque | Tilting Moment | Holding Torque | Gear Ratio | Tracking Precision | Weight |
| WE9 | 8kN.m | 33.9kN.m | 38.7kN.m | 62:01:00 | <=0.15° | 48.5kg |
| WE14 | 10.8kN.m | 67.8kN.m | 48kN.m | 86:01:00 | <=0.13° | 68kg |
| WE17 | 12.96kN.m | 135.6kN.m | 72.3kN.m | 104:01:00 | <=0.1° | 90kg |
| WE21 | 28.7kN.m | 203kN.m | 105.8kN.m | 90:01:00 | <=0.1° | 169kg |
DRE hot and common slewing drives are listed in the table.
<
| Open Housing Slew Drive | S9 | S12 | S14 | S17 | |||||
| Enclosed Housing Slew Drive | SE3C/PE3C | SE5A/PE5A | SE7/PE7 | SE9A/PE9A | SE12A/PE12A | SE14A/PE14A | SE17/PE17 | SE21/PE21 | SE25/PE25 |
| Double Worm Slew Drive | SE14-2/S14-2 | SE17-2/S17-2 | SE21-2/S21-2 | SE25-2/S25-2 | |||||
| Modular Vehicles Slew Drive | HSE21 | HSE25 | HSE21-2 | HSE25-2 | |||||
| Worm Gear Slew Drive | WE9 | WE12 | WE14 | WE17 | WE21 | WE25 | |||
| Dual Axis Slew Drive | SDE3/PDE3 | SDE5 | SDE9 | SDE12 | SDE14 | SDE17 |
